LANTIME M450/GPS:
NTP Time Server with GPS Reference Clock for Railmount Installations

標準仕様:

• Synchronization of NTP and SNTP compatible clients
• Web based status and configuration interface and console based graphical configuration utility
• Supported net protocols: IPv4, IPv6, NTP, SNTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SAMBA, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, TELNET, W32TIME
• Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
• Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
• USB port for performing updates, lock front panel, and
• backup/restore configuration and log files
• Antenna connected with up to 300 m (984 feet) of standard coaxial cable RG5

The perfect solution where full LANTIME functionality and versitility are required in a compact industrial chassis.

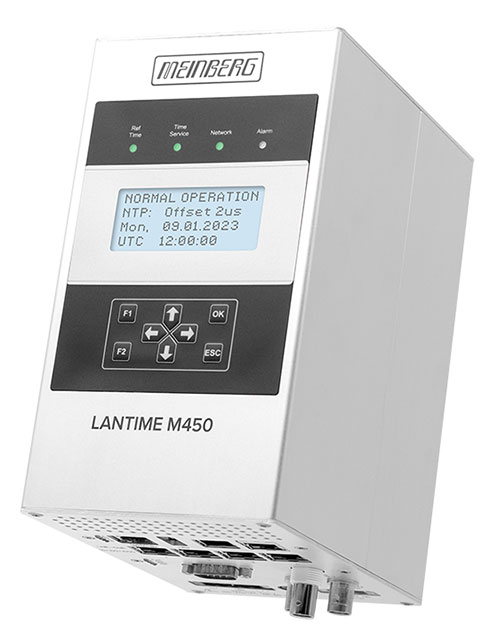

The LANTIME M450 Time Server has versatility similar to the M320 rackmount series, and provides accurate time to your network in a compact and full-featured DIN railmount package for industrial applications such as utility substations, process control, and automation systems. The successor to the LANTIME AHS and DHS models, the M450 includes an LC display and keypad and a wider variety of options than were available in those models. The LCD menu allows configuration of a large number of features and provides detailed status information for the reference signal (synchronization, lock, etc.) or NTP related information (current stratum, offset, and source of synchronization). The front panel black-on-white LCD has an automatic backlight feature for easy viewing in dark areas,and provides a convenient means to set the basic network parameters such as IP address, gateway, and netmask. All connections for power, antenna, network, output signals and configuration are conveniently provided on the front panel, and include 10 MHz and 1 PPS outputs via BNC connectors. The M450 has a wide-range power supply that can operate from 100-240 VAC or VDC.

Because of its modular system architecture it is possible to equip a LANTIME M450 Time Server with a number of different reference time sources. The M450 includes a Reference Clock that will synchronize to either GPS, WWVB, DCF77(PZF), MSF, available IRIG/AFNOR Time Codes, or an MRS version which can synchronize to a combination of these with user-selectable priority and switchover time.

A highly stable TCXO internal oscillator is provided to maintain timing accuracy during periods of interference or temporary loss of synchronization There are also several precision quartz oscillator options available for applications with higher accuracy and stability requirements. The oscillator determines the holdover characteristics (drift) when the Reference Clock signal is disturbed or temporarily unavailable.

Additional options include DC power input, additional network or serial ports, different serial string configurations, and frequency and pulse outputs.

In conjunction with a Meinberg VP100 large wall mount display, all alarm notifications can be displayed for viewing at a greater distance such as in a control room or monitoring station.

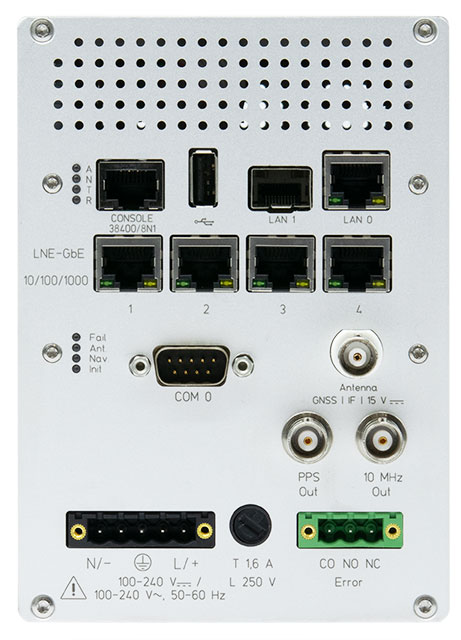

Interfaces and connectors

Front Panel
3 x Bicolor LEDs:	Ref. time, Time Synchronization Service (NTP) and Network-Link status
1 x Red alarm LED	(configurable)
Bottom Panel
RS-232 interface (Console)	RJ45 jack for initial setup and configuration
1 x USB (Rev. 1.1)	front panel interface to: - install firmware upgrades - backup and restore configuration files - copy security keys - lock/unlock front panel keys
Network Interface:
2 Network ports:	1 x 10/100/1000Base-T RJ45 1 x 1000Base-T SFP Slot
Outputs: (all I/O connectors are accessible from the bottom)
PPS (Pulse Per Second)	BNC connector
10 MHz TTL	BNC connector
RS-232 serial time string	9pin D-SUB connector
Standard power supply:
Supports both - AC and DC 100-240 V Option: low DC - 20-60 V
Synchronization Source Input:
Meinberg GPS antenna input, BNC female connector, isolated
