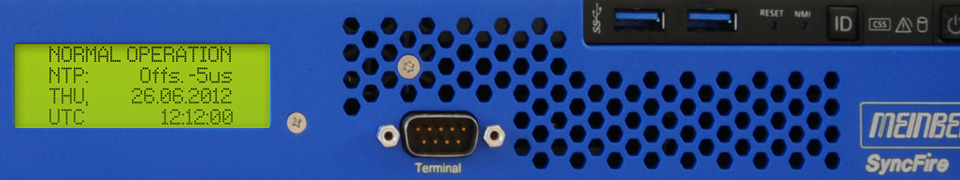

SyncFire 1100: High performant NTP Time Server
Key Features:
- Synchronization of NTP and SNTP compatible clients
- Web based Status- and Configuration Program
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
- Antenna connected with up to 300m of standard coaxial cable RG58
- Up to six independent RJ-45 ethernet interfaces 10/100/1000 MBit/s
The redundant, hot-pluggable power supplies and system fans ensure a 24/7 operation, 365 days a year with no or minimal downtime for repair in case of a hardware failure. The ability to add a second GPS receiver for a redundant reference time source plus the capability to form redundant network links by assigning multiple LAN interfaces to a high availability bonding group provide an unmatched level of reliability.
This makes the Meinberg SyncFire 1100 one of the world‘s strongest and most reliable NTP appliances on the market and the perfect fit for high performance NTP requirements like synchronization of Femtocell Access Points, VOD Set Top Boxes or large scale general purpose IT and Telecommunication networks.
The SyncFire 1100 is equipped with a TCXO oscillator. Time base upgrades up to OCXO-HQ are possible (look at oscillator options for details) as standard. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed). For applications with higher accuracy requirements there are several oscillator options available.
